Description
Technical Parameters
Technical Specifications
| Item | Specifications |

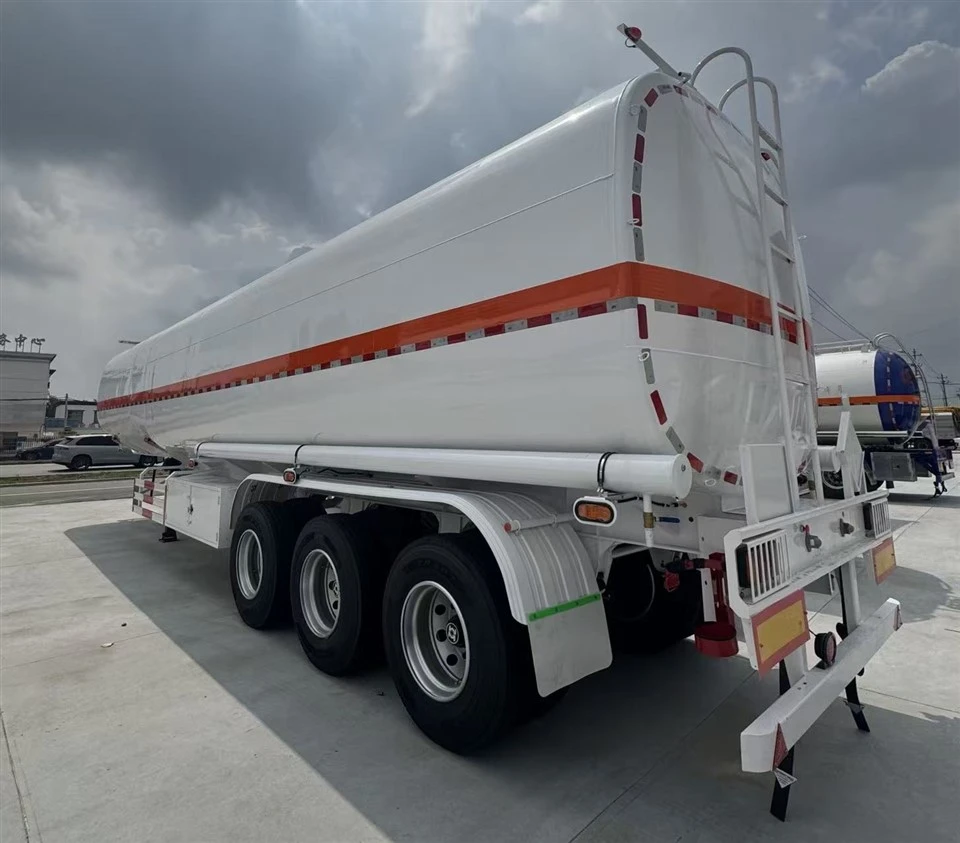

| Product Name | Tri-Axle Fuel Tank Semi Trailer |
| Tank Volume | 30CBM / 40CBM / 45CBM / 60CBM (Customizable) |
| Tank Material | Carbon Steel / Aluminum Alloy (Optional) |
| Compartments | 2-6 separate compartments (Custom) |
| Axle Setup | 3 Axles, Mechanical Balanced Suspension (Air Suspension Optional) |
| Tire Size | 12R22.5 Heavy Duty Explosion-proof Tire |
| Support Legs | 2 Sets Mechanical Hydraulic Support Outriggers |
| Brake System | Multi-circuit Air Brake with Emergency Brake |
| Safety Parts | Flame arrester, oil & gas recovery pipeline, anti-static strip, overfill probe |
| Transport | Medium Gasoline, Diesel, Kerosene, Fuel Oil |
| Export Markets | Africa, Southeast Asia, Middle East, Central Asia |
| Custom Items | Tank volume, compartment number, suspension type, tank material, logo & color |
Detailed Introduction

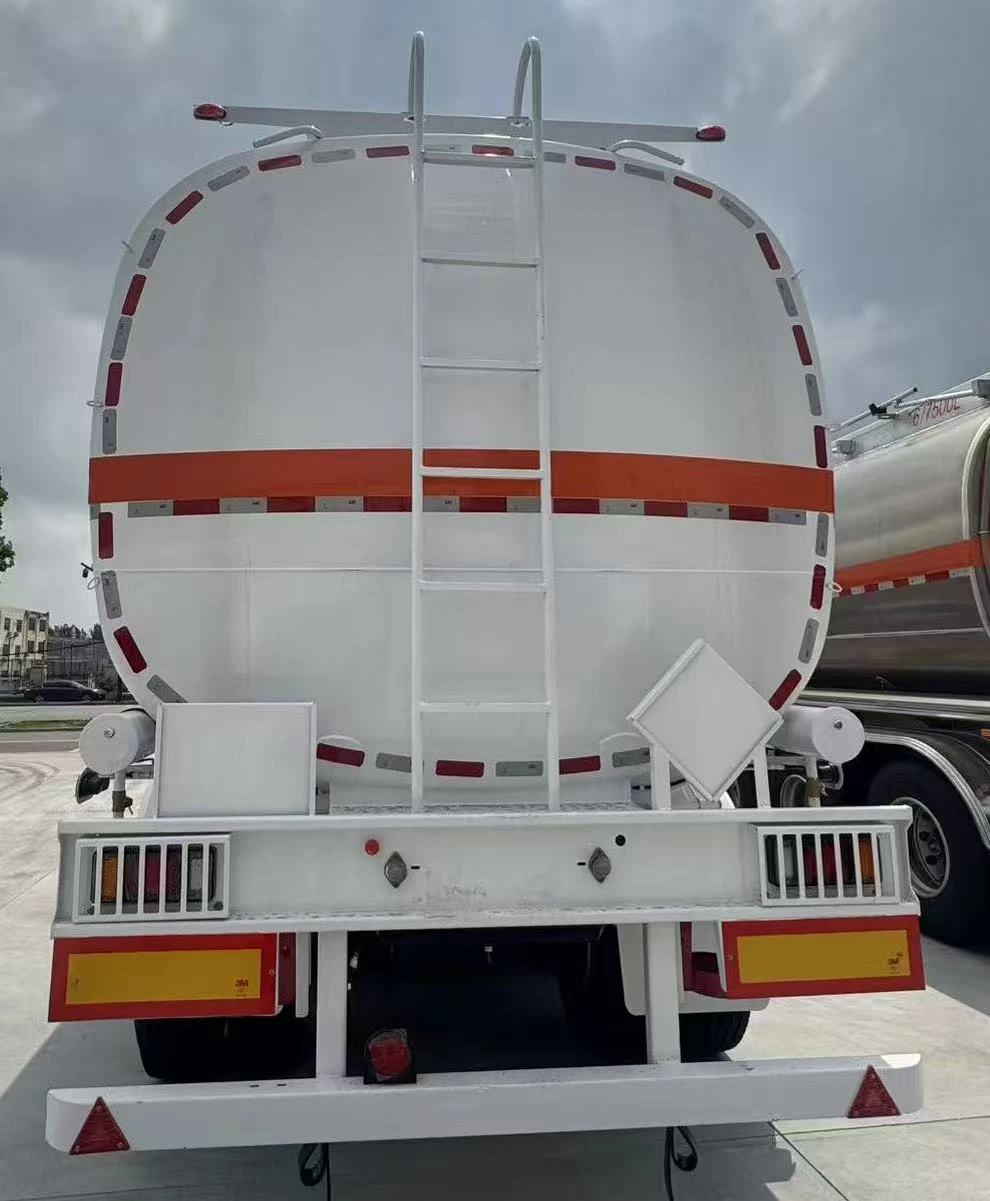

Tank Body Structure: Large Separate Compartment Design of Tri-Axle Fuel Tank Semi Trailer
- The tank body of Tri-Axle Fuel Tank Semi Trailer adopts integrated rolling forming technology with leak-free welding seams. Multiple independent compartments separate different fuels to avoid cross-contamination.
- Standard tank volume ranges from 30CBM to 60CBM. Optional lightweight aluminum alloy tank reduces dead weight by 25% compared with carbon steel tanks to increase cargo capacity per trip.
- The tank surface is coated with anti-corrosion weather-proof paint, matched with orange safety reflective strips to resist corrosion under long-term outdoor exposure and coastal humid weather, extending the service life of the tanker trailer.
- Anti-slip maintenance ladders, manhole covers and breathing valves are installed on the tank top to guarantee safe refueling operation, which are essential parts of fuel transport semi trailer.

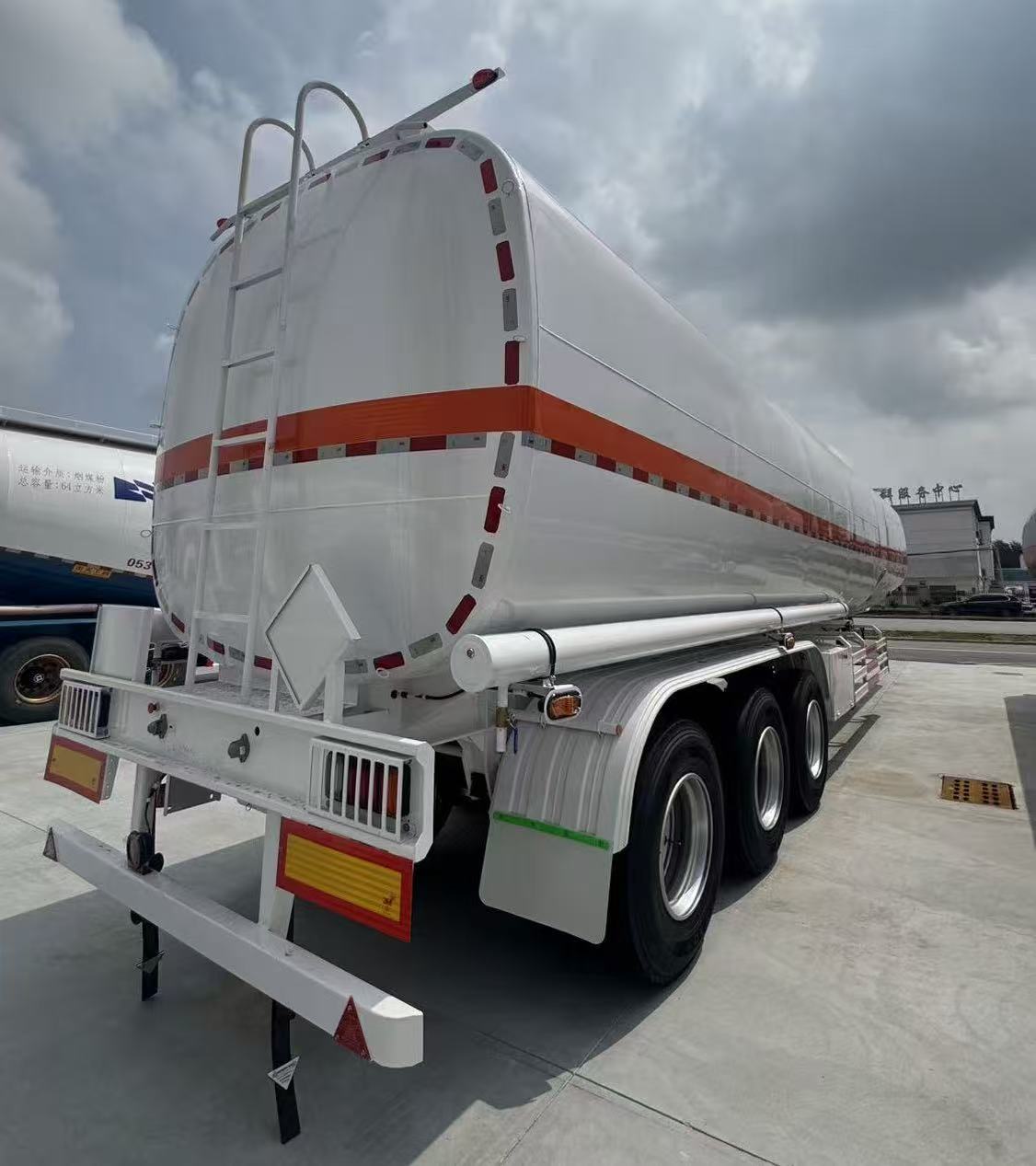

Tri-Axle Heavy-Duty Chassis for Stable Long-Distance Delivery
- Tri-Axle Fuel Tank Semi Trailer is equipped with standard tri-axle mechanical balanced suspension, with air suspension as optional upgrade. Three axles evenly share tank weight, offering excellent shock absorption on gravel roads and bumpy rural highways to eliminate driving risks caused by liquid fuel sloshing.
- The whole vehicle is fitted with explosion-proof heavy-duty vacuum tires and wear-resistant wheel guards. Two sets of mechanical support legs ensure stable parking and oil loading/unloading when detached from tractor heads.
- Complete air brake system with emergency cut-off brake delivers sensitive braking under full load, meeting strict safety standards for dangerous goods transportation.
Complete Explosion-Proof Oil & Gas Recovery Safety System
- As a special trailer for dangerous liquid transport, Tri-Axle Fuel Tank Semi Trailer is fully equipped with explosion-proof safety components: bottom oil loading & unloading pipelines, oil and gas recovery pipelines, anti-static grounding strips, flame arrestors and overfill prevention probes. Volatile oil gas is recycled during refueling to cut pollution and fire hazards.
- The full anti-static design eliminates static accumulation during transit, greatly improving operation safety at gas stations and oil fields, fully complying with overseas dangerous goods transport regulations.
Full Customization Service for Global Export Markets
- Tri-Axle Fuel Tank Semi Trailer supports comprehensive customization: adjustable total tank volume, separate compartment quantity and single compartment capacity; optional aluminum alloy / carbon steel tank, air suspension, hydraulic oil pump and various tire sizes. Body color, reflective marks and warning signs can be modified according to local traffic laws.
- We provide complete export customs documents and dangerous goods certification for bulk shipment to Nigeria, Kenya, Malaysia, Saudi Arabia, Tanzania and other countries, satisfying bulk purchase demands of oil logistics companies, large oil fields and chain gas stations.
- Tri-Axle Fuel Tank Semi Trailer is fitted with safety pressure relief devices, explosion-proof accessories, anti-slip climbing ladders and complete oil and gas recovery pipelines. It features anti-corrosion, wear resistance and lightweight design to effectively cut fuel consumption during long haul transport. Customization on tank volume, compartment quantity and tank material is available, making it the primary transport equipment for oil trading companies in Africa, Southeast Asia and the Middle East.
Our Service
We supply one-stop export service for Tri-Axle Fuel Tank Semi Trailer.
- Customization: Adjust tank volume, compartments, tank material and accessories for local fuel transport rules.
- Strict QC: All Tri-Axle Fuel Tank Semi Trailer pass leak test and safety inspection before shipment.
- Full documents: Complete certification and customs papers for global clearance.
- Global logistics: Container & flat rack shipping to Africa, Middle East and Southeast Asia.
- After-sales support: Sufficient spare parts for Tri-Axle Fuel Tank Semi Trailer long-term maintenance.
FAQ
Q: What cargo can Tri-Axle Fuel Tank Semi Trailer carry?
A: Gasoline, diesel, kerosene and other liquid fuels.
Q: What materials are available for the tank body?
A: Aluminum alloy and carbon steel for Tri-Axle Fuel Tank Semi Trailer.
Q: Does Tri-Axle Fuel Tank Semi Trailer meet dangerous goods standards?
A: Yes, full explosion-proof safety parts for hazardous liquid delivery.
Q: What suspension is equipped on Tri-Axle Fuel Tank Semi Trailer?
A: Standard mechanical suspension, air suspension optional.
Q: Can you provide full export documents for customs clearance?
A: Complete certifications and papers for global export.
