Commercial Truck Manufacturer & Supplier for Heavy-Duty Transport and Construction Applications



Heavy and medium-duty commercial trucks engineered with high-strength chassis frames, electronically controlled diesel power units, and heavy-duty planetary reduction axles. Manufactured under ISO 9001 and IATF 16949 automotive quality management standards for fleet operators, logistics companies, and regional equipment distributors.




FirstLast

Truck Types

Truck Category

Gross Vehicle Weight (GVWR)

Typical Powertrain Setup

Key Engineering Applications

Heavy-Duty Tractor Truck

40T - 70T (GCW)

420HP - 560HP, 12/16-Speed AMT

Long-haul logistics, cross-border freight, intermodal port transit.

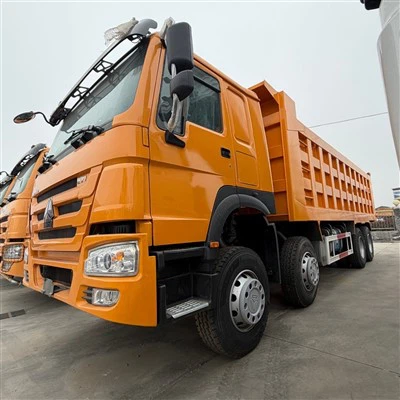

Construction Dump Truck

25T - 50T

380HP - 480HP, Heavy Reduction Axles

Civil engineering, sand/gravel transport, open-pit mining.

Cargo / Flatbed Truck

18T - 32T

280HP - 420HP, 4x2 / 6x4 Drive

Regional palletized distribution, livestock hauling, utility transport.

Concrete Mixer Truck

31T - 40T

350HP - 430HP, PTO Power Take-off

Ready-mix concrete delivery to urban and remote construction sites.

Specialized Vocational Chassis

18T - 50T

Customized Wheelbase / Power Take-off

Municipal sanitation, firefighting bodies, oilfield service rigs.



Engine & Chassis Specifications


Powertrain & Drivetrain

Component

Technical Specifications

Engine

Inline 6-cylinder turbocharged diesel engine; Weichai, Cummins, or Volvo-derived platforms

Engine Displacement

9.5–13 L

Engine Output

340–560 HP

Maximum Torque

1,800–2,600 Nm at 1,000–1,400 RPM

Emission Standards

Euro V / Euro VI or applicable EPA / CARB requirements, depending on engine configuration and target market

Transmission

Fast Gear, ZF, or Allison manual, automated manual transmission (AMT), or automatic transmission; hydraulic retarder available on selected configurations

Clutch

Single-plate dry diaphragm spring clutch, 430 mm diameter, with hydraulic booster

Chassis Frame & Axles

Component

Technical Specifications

Frame Construction

Dual-layer parallel ladder frame; 8 mm + 8 mm or 8 mm + 5 mm reinforcement; high-strength low-alloy structural steel (Q345B or T700, subject to material specification); shot-blasted and electrophoretically coated

Front Axle

Forged I-beam, drop-center design; 7-ton, 9-ton, or 10-ton capacity

Rear Axle

Single-reduction hypoid axle or dual-reduction planetary hub-reduction axle

Rear Axle Capacity

13-ton, 16-ton, or 18-ton capacity per axle

Differential Locks

Optional inter-wheel and inter-axle differential locks

Axle Ratio

3.73–5.92

Suspension

Heavy-duty multi-leaf springs with 9, 10, or 12 leaves, shock absorbers, and stabilizer bars; electronically controlled air suspension (ECAS) available on selected configurations

Braking System

Dual-circuit pneumatic drum or disc brakes; WABCO EBS with ABS, ASR, and ESC, subject to configuration

Auxiliary Braking

Engine exhaust brake; optional Jake brake or hydraulic retarder, depending on powertrain

Steering

Hydraulic power-assisted steering

Tires

12.00R20, 315/80R22.5, or 295/80R22.5 radial tubeless tires

Wheels

Steel disc wheels



6x4Dump Truck manufacturers



Applications

Long-Haul Logistics: Cross-country freight forwarding, highway logistics, and high-capacity container transport.



Construction & Infrastructure: Earthmoving, transport of heavy aggregate materials, and highway development support.



Urban & Regional Distribution: Dry freight delivery, cold-chain distribution, and municipal utility services.



Mining & Heavy Industries: Off-road raw ore hauling, logging support, and heavy machinery field service.



Configuration & Customization



Cab Options

Day cab, low-roof sleeper cab, or high-roof dual-bunk sleeper cab with air suspension seating, automatic climate control, and digital telematics interface.

01

Wheelbase Options

Variable wheelbase increments optimized for specific body lengths (dump boxes, mixer drums, or van bodies).

02

Power Take-Off (PTO)

Engine-mounted (Front PTO) or transmission-mounted (Rear PTO) configurations for hydraulic pumps, cranes, and concrete mixers.

03

Climatic Packages

Cold-weather packages featuring fuel pre-heaters, battery thermal blankets, dual-line frost protection air dryers, and heavy-duty radiator cores.

04

Fuel Tank Capacity

Single or dual aluminum alloy fuel tanks ranging from 400L to 1000L capacity with lockable caps.

05



Quality Control & Vehicle Inspection

Production operates under ISO 9001 and IATF 16949 automotive manufacturing quality management systems to verify structural reliability and functional safety across every truck chassis.

Manufacturing Workflow Steps:

  • CNC Laser Plate Cutting & Frame Stamping
  • Robotic Seam Welding & Chassis Assembly
  • Anti-Corrosion Electrophoretic Deposition (ED) Primer
  • Automated Powertrain & Drivetrain Assembly
  • Wheel Alignment & Electronic Sensor Calibration
  • Chassis Dynamometer Load & Brake Performance Testing
  • Final Water-Spray Sealing & PDI Sign-off



Chassis Frame Integrity: Main frame rails formed on heavy hydraulic presses and robotically welded to prevent stress concentration under maximum bending moments.



Surface Anti-Corrosion: Structural frames undergo multi-stage chemical degreasing, zinc phosphating, cathodic electrophoretic coating (ED), and high-durability topcoat baking.



Pre-Delivery Performance Testing: Every chassis undergoes computerized brake roller tests, steering geometry laser alignment, axle load distribution verification, and dynamometer road simulation to confirm torque delivery and emissions compliance.



Export & After-Sales Support


Shipping & Logistics Configurations

Ro-Ro (Roll-on / Roll-off): Fully assembled truck units driven directly onto specialized vessel decks, protected with waterproof wrapping for maritime transit.

SKD / CKD (Semi / Complete Knocked Down): Cabs, frames, and axles bundled efficiently into 40ft High Cube containers or flat racks for assembly at destination facilities.

Spare Parts & Technical Support

Replacement Parts Dispatch: Critical wear parts—including fuel filters, brake linings, sensors, electronic modules, and suspension bushings—are stocked for immediate air freight dispatch.

Technical Documentation: Each fleet order is supplied with comprehensive electronic parts catalogs (EPC), OEM diagnostic software interface guidelines, wiring schematics, and operator maintenance manuals.





FAQ



Q: What engine brands and emission standards are available for your commercial trucks?

A: We equip our commercial trucks with proven diesel engine platforms including Weichai, Cummins, and MAN-derived blocks. Engines are configured to meet Euro V, Euro VI, or EPA Tier 4 Final / CARB emission standards using integrated Selective Catalytic Reduction (SCR) and Diesel Particulate Filter (DPF) aftertreatment systems.

Q: Can the truck chassis be customized for local bridge laws and axle-load regulations?

A: Yes. Our engineering team modifies wheelbase dimensions, overhang lengths, kingpin settings, and front-to-rear axle load distribution to comply with regional transport ministry weight limits (such as DOT bridge formulas in North America or local axle-weight limits in Europe).

Q: What measures prevent chassis frame cracking under severe construction or mining loads?

A: Chassis strength is maintained through dual-layer ladder frame designs (high-strength alloy steel inner and outer channels) joined with high-tensile fasteners rather than rigid welding at high-stress torsion points. All frame components undergo finite element analysis (FEA) simulation and static load testing prior to production.

Q: What transmission options do you offer for heavy hauling and highway driving?

A: We provide manual transmissions (9, 12, or 16-speed) as well as advanced Automated Manual Transmissions (AMT) from brands such as ZF and Fast Gear. For steep downhill operations, we integrate auxiliary braking systems including exhaust brakes, Jake brakes, or hydraulic retarders to ensure downhill speed control and reduce brake pad wear.

Q: How is the cab protected against rust and corrosion in salted road environments?

A: Cab metal stampings undergo cathodic electrophoretic deposition (ED coating) to penetrate internal cavities, followed by structural seam sealing and multi-layer corrosion-resistant paint application. Underbody frame areas are coated with high-solid protective waxes to withstand road salt and chemical exposure.

Q: What is the standard production lead time and what after-sales documentation is provided?

A: Standard manufacturing lead time ranges from 25 to 35 business days following technical specification sign-off and deposit receipt. Every delivery includes factory inspection certificates, complete parts catalogs with original part numbers, ECU diagnostic protocol documentation, and maintenance schedules.

As one of the most professional truck manufacturers and suppliers in China, we also support customized service. Please feel free to buy high quality truck for sale here from our factory. For price consultation, contact us.
