Construction Machinery

Industrial Construction Machinery Supplier & Global Exporter



We manufacture heavy construction machinery engineered for demanding earthmoving, infrastructure, and mining applications. Production lines integrate robot-welded structural frames, CNC-machined boom assemblies, and hydraulics tested to ISO 4406 cleanliness standards. All equipment meets EPA Tier 4 Final / EU Stage V emission standards, ensuring seamless deployment in North American and European fleets.




First
12
Last

Equipment Range

Equipment Category

Key Models

Operating Weight Range

Power Output Range

Core Application

Crawler Excavators

XE210, XE350, XE490

21500 - 49000 kg

115 - 298 kW

Deep trenching, mass excavation, quarrying

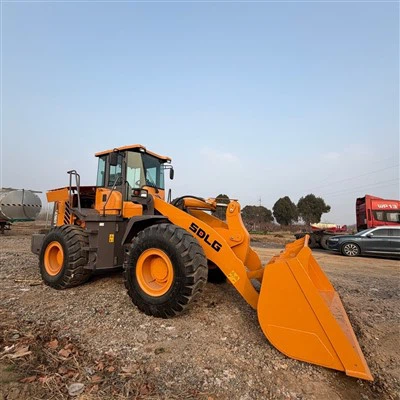

Wheel Loaders

WL930, WL950, WL980

10500 - 24000 kg

92 - 221 kW

Stockpile loading, quarry work, bulk handling

Crawler Bulldozers

BD160, BD220, BD320

17200 - 35500 kg

120 - 257 kW

Site grading, ripping, heavy push earthworks

Backhoe Loaders

BL880, BL890

7600 - 8800 kg

74 - 82 kW

Utility trenching, urban infrastructure, loading

Vibratory Road Rollers

VR120, VR200

12000 - 20000 kg

97 - 140 kW

Subgrade compaction, asphalt paving



Technical Specifications

Specification Parameter

XE210 Crawler Excavator

WL950 Wheel Loader

BD220 Crawler Bulldozer

Engine Model

Cummins B6.7 / Perkins 1204E

Cummins QSB6.7

Cummins NT855 / CAT C9.3

Emissions Standard

EPA Tier 4 Final / EU Stage V

EPA Tier 4 Final / EU Stage V

EPA Tier 4 Final / EU Stage V

Rated Net Power

129 kW @ 2000 rpm

168 kW @ 2200 rpm

175 kW @ 1800 rpm

Operating Weight

21800 kg

17500 kg

23800 kg

Standard Capacity

1.05 m3 (Heavy-Duty Bucket)

3.0 m3 (General Purpose)

6.4 m3 (Semi-U Blade)

Main Hydraulic Pump

Kawasaki K3V112DT

Rexroth A10VO

Gear Pump / Load Sensing

Main Control Valve

Kawasaki KMX15RA

Rexroth M4-12

Pilot Hydraulic Control

Breakout Force (Bucket/Blade)

149 kN

175 kN

210 kN

Travel Speed (Max)

5.5 km/h

38.0 km/h

11.8 km/h

System Pressure

34.3 MPa

21.0 MPa

19.0 MPa



Applications



Infrastructure & Highway Construction

Precision subgrade compaction and roadbed excavation using integrated 3D GPS grading compatibility.

Commercial Earthmoving & Site Prep

High-volume material movement utilizing reinforced boom/stick structures designed for 10000+ hour fatigue lifespans.

Quarrying & Mining Ops

Heavy-rock handling using cast-steel linkages, rock-guard undercarriages, and abrasion-resistant (HARDOX 450) buckets.

Demolition & Utility Work

Auxiliary hydraulic piping (high-pressure dual-way + breaker lines) allows rapid attachment integration (hydraulic shears, hammers, tiltrotators).



Telescopic Boom Aerial Lift



Equipment Configuration

Engine Options: Cummins, Perkins, or Deutz engines matched to Danfoss electronic control units (ECU) for optimal fuel consumption under varying load profiles.



Hydraulic Systems: Closed-center load-sensing (CCLS) hydraulic systems from Kawasaki and Rexroth, reducing hydraulic oil overheating and parasitic energy loss by up to 15 percent.



Structural Fabrication: High-tensile Q355B/Q690D steel plates cut via CNC plasma and welded with automated robotic arms. Critical load-bearing joints undergo Ultrasonic Flaw Detection (UT).



Under-carriage & Powertrain: ZF automatic power-shift transmissions, Dana wet-disc drive axles, and heat-treated forged track chains (HRC 52-58) for extended wear life.



Operator Environment: ROPS/FOPS Level II certified press-sealed cabins equipped with Grammer air-suspension seats, HVAC, 10-inch touchscreen display, and CAN-bus telemetry.



Inspection & Performance Testing


Every machine undergoes strict QA validation before factory discharge:
[Raw Material Inspection] -> [Robotic Frame Weld UT/NDT] -> [Assembly Line Torque Audit] -> [8-Hour Load & Hydraulic Pressure Test] -> [PDI Final Checklist] -> [100% Factory Shipping]

Hydraulic Pressure & Contamination Audit

Hydraulic systems undergo 100 percent flushing to achieve ISO 4406 cleanliness standards (16/14/11). Relief valves are bench-tested at 110 percent rated system pressure.

Stress & Fatigue Testing



Structural frames undergo finite element analysis (FEA) during design, followed by physical strain-gauge stress testing on factory trial tracks.

8-Hour Dynamic Duty Cycle Run



Completed units operate continuously for 8 hours under full hydraulic payload. Thermal imaging inspections verify zero localized heat buildup across drive axles, pumps, and control blocks.

Pre-Delivery Inspection (PDI)



A 120-point checklist confirms torque values on frame fasteners, ECU software parameters, fluid levels, and paint dry-film thickness (minimum 120 um polyurethane coating).



Shipping, Spare Parts & Technical Support




Export Logistics & Packaging

Shipping Formats: Flat-rack containers, Ro-Ro (Roll-on/Roll-off), or Breakbulk depending on overall machine dimensions and axle weights.

Corrosion Protection: Critical hydraulic cylinder rods, machined pin joints, and electrical connectors receive anti-salt spray wax coating for ocean transit up to 60 days.

Spare Parts Availability

85 Percent Component Commonality: Fast-wearing items (filters, seals, ground engaging tools, hydraulic hoses, track shoes) utilize standard international ISO/SAE part numbers.

Spare Parts Kits: Optional 1000-hour / 2000-hour maintenance kits shipped inside machine toolboxes for initial fleet setup.

Field Technical Support

Diagnostic Telemetry: Built-in 4G GPS/CAN telemetry modules enable remote diagnostic fault-code reading and system firmware updates.

Documentation & Manuals: Complete English technical documentation supplied: Parts Catalog with OEM cross-references, Shop Repair Manual, Operation & Maintenance Manual, and Wiring Schematics.





FAQ



Q: Do your machines comply with EPA Tier 4 Final and EU Stage V emission standards?

A: Yes. Export configurations for North America and Europe utilize factory-installed Cummins or Perkins engines with Diesel Particulate Filter (DPF), Selective Catalytic Reduction (SCR), and Diesel Exhaust Fluid (DEF) dosing systems compliant with EPA Tier 4 Final / EU Stage V rules.

Q: What brand of hydraulic components are installed in your heavy equipment line?

A: Standard production models integrate Kawasaki hydraulic main pumps and main control valves, combined with Rexroth or Eaton swing/travel motors. Hydraulic hoses utilize Eaton or Manuli double-wire braided assemblies rated for severe pulse pressure cycles.

Q: Can you accommodate custom structural modifications or specialized attachments (OEM/ODM)?

A: Yes. We offer custom boom/stick length configurations, high-reach demolition fronts, extra hydraulic auxiliary lines (proportional control), automatic central lubrication systems, and specialized buckets fabricated with HARDOX wear plates based on technical drawing reviews.

Q: How do you handle warranty claims and technical spare parts delivery?

A: Machines include a standard 12-month or 2000-operating-hour full warranty (whichever occurs first) covering major structural components, engine assembly, hydraulic pump, transmission, and main valve. Spare parts are dispatched within 48 hours via DHL/FedEx air freight from central inventory.

Q: What structural welding standards and non-destructive testing (NDT) procedures do you use?

A: Structural frames utilize Q355B and Q690D high-strength structural steel. Welding complies with AWS D1.1 standards. All primary load-bearing welds on boom pivot points, turntable mountings, and track frames undergo 100 percent Ultrasonic Testing (UT) and Magnetic Particle Testing (MT).

Q: How are large machines packaged to prevent corrosion during sea transport?

A: Machines shipped via Ro-Ro or Flat-Rack receive heavy-duty marine wax sealant on exposed metal surfaces, chrome cylinder rods, and electrical harness junctions. Cabins are sealed with desiccant packs inside. All track links and undercarriage parts receive thick rust-inhibiting primer coatings.

As one of the most professional construction machinery manufacturers and suppliers in China, we also support customized service. Please feel free to buy high quality construction machinery for sale here from our factory. For price consultation, contact us.
