Semi-trailer

Semi-Trailer Manufacturer & Wholesale Supplier for Heavy-Duty Transport and Logistics



Engineered heavy-duty semi-trailers built with high-tensile steel structural frames, certified axle assemblies, and automated welding processes. Manufactured to DOT, CE, and ISO 3834 standards for fleet operators, logistics companies, and regional equipment distributors.




FirstLast

Product Range

Trailer Category

Payload Capacity

Axle Configuration

Key Engineering Features

Flatbed Semi-Trailer

30T - 60T

2 / 3 / 4 Axles (BPW/FUWA)

Q345B/T700 main beams, 12 twist locks for 20ft/40ft ISO containers, recessed tie-down points.

Skeleton / Chassis Semi-Trailer

20T - 50T

2 / 3 / 4 Axles

Lightweight frame design, gooseneck option, container locking mechanisms for port logistics.

Lowbed Semi-Trailer

40T - 120T

2 - 8 Axles (Hydraulic/Rigid)

Heavy-duty ramps (spring/hydraulic), low deck height (850mm - 1000mm), HG60 high-tensile steel main girders.

Side Wall / Fence Semi-Trailer

30T - 70T

3 / 4 Axles

Removable side panels (600mm - 1200mm height), reinforced corner posts, dual-action tailgate.

Rear / Side Dump Semi-Trailer

30T - 80T

3 / 4 / 5 Axles

HYVA hydraulic lifting cylinders, U-shape or rectangular box in Hardox 450 / Q345 wear-resistant steel.

Fuel / Chemical Tanker Trailer

30,000L - 60,000L

3 / 4 Axles

Carbon steel, stainless steel (304/316L), or aluminum alloy; multi-compartment setups; ADR compliant.



Specifications & Configurations

Component

Technical Specifications

Main Beam

Submerged arc welded I-beams; web height: 480–520 mm; top flange: 14–20 mm; bottom flange: 16–25 mm; web plate: 8–14 mm

Steel Material

High-strength Q345B carbon steel, Q460 low-alloy steel, or T700 thermo-mechanically rolled steel

Crossmembers

Cold-formed channel steel, spaced at 300–400 mm intervals

Floor Plate

3–5 mm checker plate or heavy-duty hardwood planking

Axles

BPW, FUWA, or SAF Holland; 13-ton, 16-ton, or 20-ton capacity per axle

Suspension

Heavy-duty mechanical leaf spring (10-piece or 13-piece) or air suspension with lift-axle mechanism

Brake System

WABCO dual-line pneumatic brake system; ABS/EBS options; 2S/2M or 4S/2M configuration

Kingpin

JOST 2-inch (50#) or 3.5-inch (90#) bolted or welded type, made of forged alloy steel

Landing Gear

JOST 28-ton, two-speed manual operation; static load rating: 80 tons

Tires & Rims

12.00R20, 11.00R20, 315/80R22.5, or 385/65R22.5 super-single tubeless tires; steel or aluminum rims

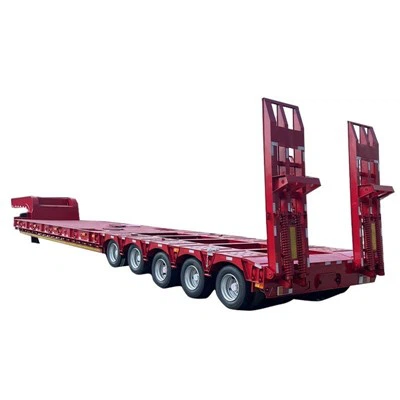

Adaptive Steering Low Bed Trailers manufacturers



Applications

Container Transport: Port-to-yard container transit, ISO standard container hauling, and intermodal freight logistics.



Construction & Mining: Heavy machinery hauling, earthmoving equipment transport, and raw ore/aggregate bulk handling.



Bulk Cargo & Agriculture: Palletized freight distribution, grain/fertilizer transport, and steel coil/pipe hauling.



Liquid & Hazardous Material: Petroleum, diesel, chemical liquid distribution, and industrial oil transport.



Customization Options



Dimensions

Length (11m to 16m), width (2.5m to 3.0m), deck height tailored to coupling height.

01

Axle Spacing & Steering

Fixed axle position, wide-track axles, or self-steering rear axles to satisfy turning radius and weight distribution limits.

02

Material Selection

High-tensile steel for maximum durability vs. aluminum alloy superstructures for tare weight reduction.

03

Hydraulic Systems

PTO-driven or independent diesel engine power pack for dumping and lowbed ramp operation.

04

Corrosion Control

Hot-dip galvanizing for chassis components exposed to salt, snow, or harsh chemical transport.

05



Quality Inspection & Manufacturing

Production operates under ISO 9001 and ISO 3834-2 certified quality management systems to guarantee structural integrity across every unit.



Manufacturing Workflow Steps:

  • CNC Plasma Cut & Plate Prep
  • Robotic Arc Welding
  • Shot Blasting (SA 2.5 Standard)
  • Polyurethane Paint Finish
  • NDT Structural Inspection
  • Track Alignment & Brake Testing
  • Delivery & Final Sign-off



Automated Welding: Main beams welded on submerged arc auto-welding lines. Longitudinal and cross-member joints processed with continuous robotic MIG welding.



Non-Destructive Testing (NDT): Ultrasonic defect detection and X-ray inspection applied to all critical load-bearing welds on main girders and pressure vessels.



Surface Preparation: Frame assemblies undergo SA 2.5 shot blasting to remove mill scale and rust, followed by a 2-coat epoxy primer and 2-coat polyurethane finish (minimum total dry film thickness: 120 microns).



Pre-Delivery Testing: Every unit undergoes air line pressure drop tests, 100% electrical circuit checks, laser axle alignment, and full-load brake performance verification.



Export, Delivery & Spare Parts




Shipping & Packaging Configurations

To optimize freight costs, trailers are configured for international transit via multiple shipment modes:
SKD / CKD (Semi / Complete Knocked Down): 3 units stacked and bundled for 40ft High Cube container shipment or flat rack transport.
Ro-Ro / Bulk Vessel: Fully assembled units protected with marine-grade wax coating prior to deck/hold loading.

Spare Parts Support

Standard Wear Parts: Stocked kingpins, brake linings, slack adjusters, air bags, twist locks, and lighting modules dispatched within 48 hours via DHL/FedEx.
Documentation: Every order includes detailed CAD line drawings, user maintenance manuals, complete parts catalogs with original part numbers, and factory test certificates.





FAQ



Q: What high-strength steel grades are used in the main frame construction?

A: We utilize Q345B carbon steel as the standard baseline for main beams and crossmembers. For extra-heavy payload requirements or weight-optimized chassis designs, we upgrade critical tension members to Q460 low-alloy steel or T700 high-tensile steel, which increases yield strength while reducing total tare weight.

Q: Can your semi-trailers meet DOT, EU, or local country axle-load regulations?

A: Yes. Our engineering team reviews your local vehicle dimension and axle-weight regulations before production begins. Kingpin location, axle spacing, deck height, bumper design, side guards, and braking systems (EBS/ABS) are tailored to comply with DOT (North America), CE/ADR (Europe), or GCC standards.

Q: What quality control measures prevent main beam cracking under heavy load?

A: Structural longevity is secured through continuous submerged arc welding (SAW) on the main beams, eliminating cold welds and stress concentration points. All primary load-bearing welds undergo ultrasonic flaw detection. Beam geometry is reinforced at the gooseneck transition zone with integrated stiffener plates.

Q: What axle and suspension brands do you equip, and are replacement parts locally available?

A: We fit original axles from global Tier-1 suppliers including BPW, FUWA, and SAF Holland, paired with Wabco pneumatic braking components and JOST kingpins/landing gear. Using internationally standardized parts ensures your maintenance team can source wear components locally without operational downtime.

Q: How are semi-trailers protected against salt fog and road salt corrosion?

A: Chassis structures undergo SA 2.5 steel shot blasting to clear oxidation and scale. This is followed immediately by a zinc-rich epoxy primer coat and a topcoat of high-solid polyurethane paint. For trailers operating in coastal or chemical environments, hot-dip galvanizing is available for crossmembers, outriggers, and sub-frames.

Q: What is the typical lead time for a custom fleet order, and how are shipping logistics handled?

A: Standard manufacturing lead time is 20 to 30 business days following technical drawing approval and deposit receipt. For logistics, we offer SKD/CKD container stacking (typically 3 units per 40ft HC or Flat Rack) to reduce sea freight rates, or direct Ro-Ro/Bulk shipping for fully assembled units.

As one of the most professional semi-trailer manufacturers and suppliers in China, we also support customized service. Please feel free to buy high quality semi-trailer for sale here from our factory. For price consultation, contact us.
